Product Description |

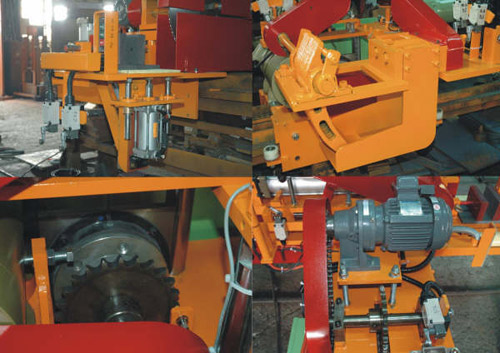

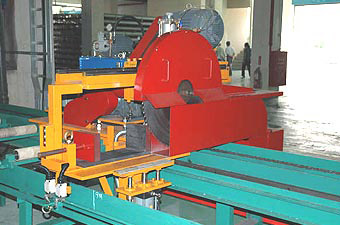

The extrusion press automatic puller operates in coordination with 420US. 420US TON ~ 4000US TON extrusion press automatic puller to produce various special industrial aluminum products. Extrusion press automatic puller is easy to operate and retrench manpower. This extrusion press automatic puller is made of steel which can gauge length with front platen saw table. Extrusion press automatic puller uses D.C. motor drive; A.C. motor drives the jaw. Sprocket automatically clips aluminum profiles in coordination with chains. According to the extrusion press extruding speed, it can adjust the speed and twisting force of jaw appropriately. Thus, the accuracy of aluminum products can be attained. Return stroke uses magnetic brake. D.C. controlling system controls operating forward stroke or return stroke and pulling force. Extrusion press automatic puller can continue operating in coordination with extrusion press extruding recycles by working speed of 1.8 M/second to 2.2 M/second.
|
